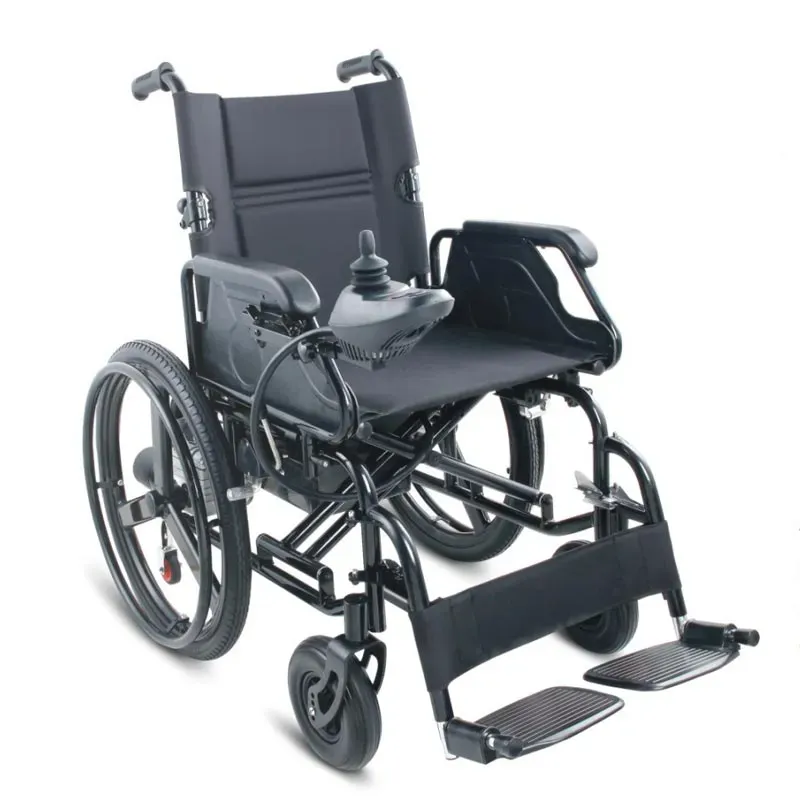

Electric Wheelchair For Outdoors

1.PG VIS controller as a driving control device for electric wheelchair, 2.Low noise (less than 60 decibels) output torque is large, which can meet the long-term climbing; 200W*2, with hand/electric switching function, convenient power failure implementation, high reliability; 3. The armrest of the wheelchair can be lifted backwards, which is convenient for the wheelchair to lean against the workbench or dining table; 4. The foot pedal of the wheelchair can be rotated 90 degrees or removed; 5. 5 gears of transmission, maximum speed of 6KM/H 6. Simple structure, strong power, electromagnetic brake (automatic braking for parking, parking can be parked at half-slope). 7.Suitable for people with leg disabilities and the elderly with limited mobility.

Send email to us PDF download

Product Detail

Product Tags

Electric Wheelchair For Outdoors

Features:
Powder coating steel frame
Rubber foam rear wheel
Detachable armrest
Drop back handle
Detachable footrest
Foldable frame
Rubber foam castor
Anti tippers

Name	Parameters
Total length	109cm
Total width	70cm
Total high	96cm
Fold width	844276
Seat width	45cm
Seat depth	41cm
Seat height off the ground	51cm
Armrest height	18.5cm
Distance between handrails	45cm
Foot pedal height off the ground	adjustable
Backrest height	43cm
Front wheel diameter	20cm
Rear wheel diameter	54cm
Maximum load	120kg
Net weight	60kg
