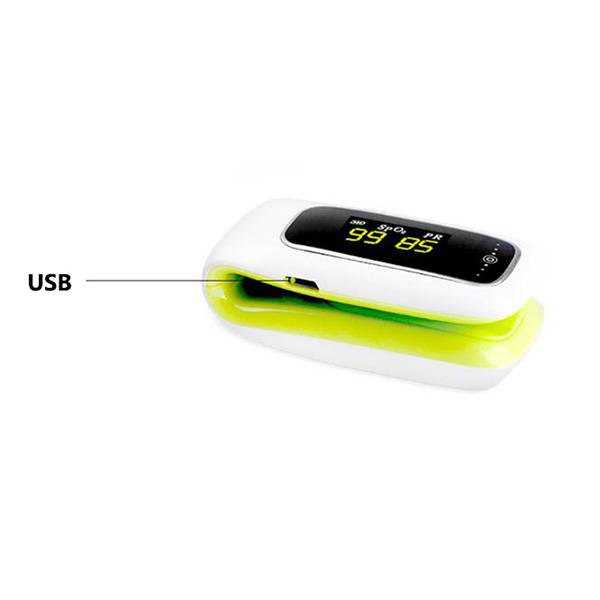

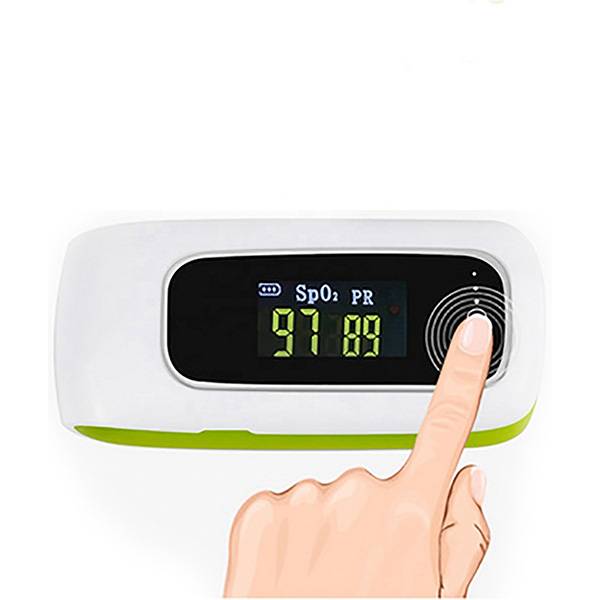

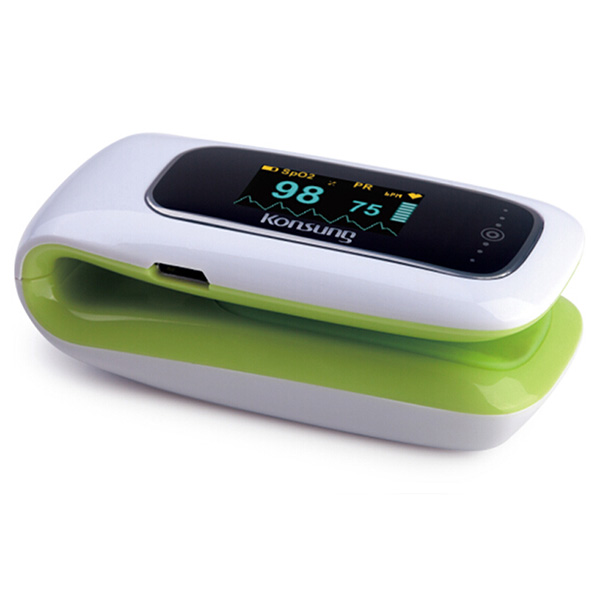

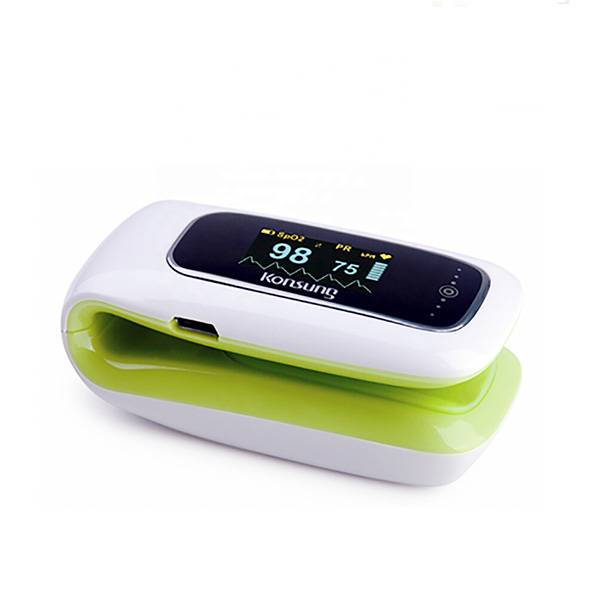

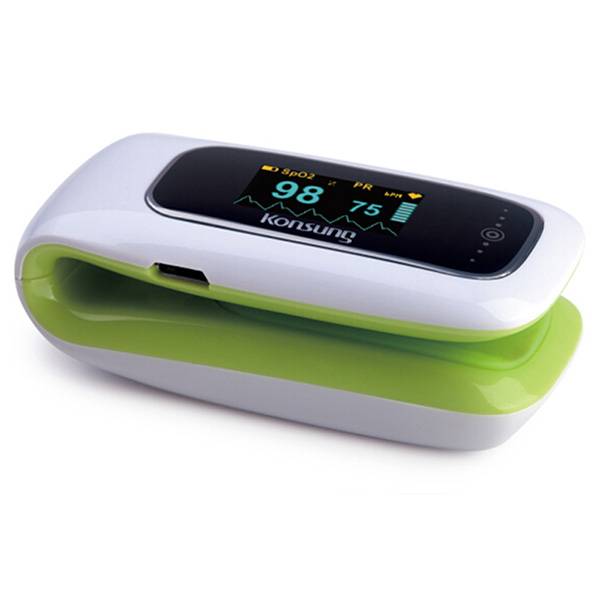

F01L FINGERTIP PULSE OXIMETER

Main Features

1). Small in volume light in weight and convenient in carrying

2). Operation of the product is simple, low power consumption

3). SpO2 value display

4). Pulse rate value display, bar graph display

Pulse waveform display

The display mode can be changed

Screen brightness can be changed

5). A pulse rate sound indication (With measured data overruns limits and low-voltage alarm function, the upper/down alarm range can be adjustable)

6). Clock function

7). Battery capacity indication: Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function

8). With SpO2 value and pulse rate value of storage, the storage data can be uploaded to computers

Real-time data can be transmitted to computers(Only for the Lei Mo probe)

9). Connected with an external oximeter probe

Specification of blood oximeter:

1). Display Mode: 1.3" 65K Color OLED display

2). Screen Resolution: 128*96

3). SpO2 Measuring Range: 0%~100%(the resolution is 1%)

4). Accuracy: 70%~100%: %, Below 70% unspecified.

5). PR Measuring Range: 30bpm~250bpm(the resolution is 1bpm)

6). Accuracy: bpm or (select larger)

7). Measurement Performance in Weak Filling Condition:SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is , pulse rate error is bpm or±2% (select larger).

8). Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±%.

9). Power Consumption: less than 100mA

10). Voltage: DC 3.6V~4.2V

11). Power Supply: Voltage 3.7 rechargeable lithium battery

Battery working hour: The theoretical number is 20 hours

Battery working life: Charge and discharge no less than 500 times.

12). Safety Type:Interior Battery, BF Type

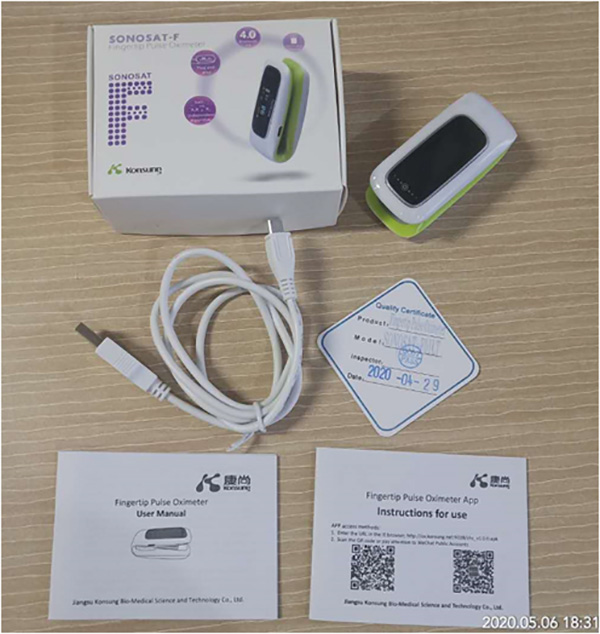

Packing information:

1pcs/color box;

40pcs/carton

Carton size: 40cm*37cm*24cm
G.w.:10kg  N.w.: 9kg
