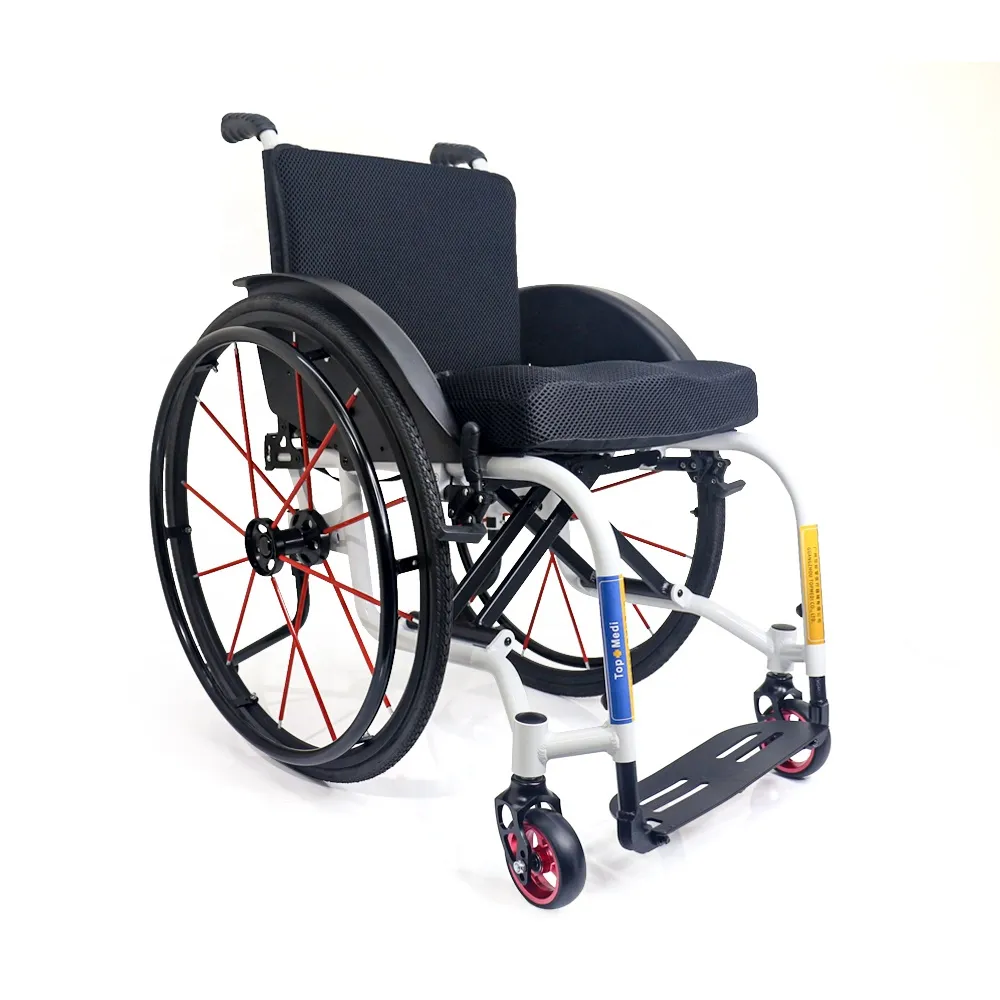

ORT723LQF14 Drive Fly Lite Sport Wheelchair
ORT723LQF14 Drive Fly Lite Sport Wheelchair
Model: ORT723LQF14
Frame:High-strength anodizing aluminum frame
Front wheel:4 inch polyurethane tires
Rear wheel:24-inch quick-release wheels, configured with 18-wire high-strength aluminum rings, pneumatic tires, high-strength quick-release rear axles, with lightweight high-strength aluminum handwheels (used when driving wheelchairs directly by hand).
Brake:aluminum alloy manual stop brake;
Seat cushion:It is formed with 420D Oxford cloth sewing, high tensile strength, and the sponge cushion can be configured with a suitable thickness (standard 5cm) according to the different requirements of different figures for wheelchair seat height.
Handrail:Fix the handguard
Skid plate:Oxidized black skid plate
Foot rests:Adjustable oxidized black leg holder
|
name |
parameter |
|
Total length |
85cm |
|
Total width |
52cm |
|
Total high |
80cm |
|
Packing size (L*W*H/pcs). |
86*32*81cm |
|
Fold width |
35cm |
|
Backrest height |
27cm |
|
Seat depth |
36cm |
|
Seat width |
36cm |
|
Seat height off the ground |
48cm |
|
Front wheel diameter |
10cm |
|
Rear wheel diameter |
60cm |
|
Maximum load |
medical history |
|
Net weight |
10.7kg |
